1 GHz Power Divider, 0.5 to 1 GHz Power Divider
Description
0.5 to 1 GHz 10 Watt LT-PD Series 2-Way Power Divider
Product Overview
The LT-PD-2S-005010 is a high-performance 2-way power divider operating from 0.5 to 1.0 GHz, designed for professional RF applications requiring reliable signal distribution.
Key Features
- 2-Way power division with stripline design
- Broad frequency range: 0.5 to 1 GHz
- High power handling: 10 Watt maximum
- Low insertion loss: < 0.6 dB
- Excellent isolation: > 20 dB
- Wide operating temperature: -40℃ to +70℃
- SMA-Female connector interface
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-2S-005010 | |
| Frequency Range | 0.5 to 1.0 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.3:1 Max. | |
| Output VSWR | 1.3:1 Max. | |
| Insertion Loss | 0.6 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 1.0 dB Max. | |
| Phase Balance | 6 Degrees Max. | |
| Input Power | 10 kW | |
| Connectors | SMA-Female | |
| Dimensions | 53×44×14 mm |
For custom specifications or special requirements, please contact our technical team.

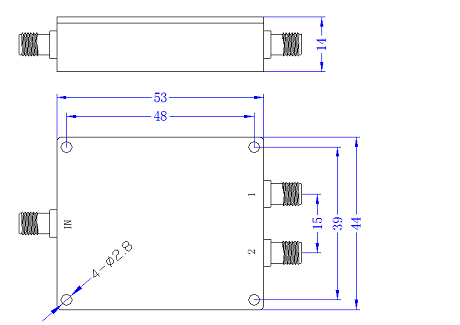

Mechanical Outline
