Detail Information
Highlight:
1.8 GHz Power Divider, 0.5 Watt Power Divider, 1.1 to 1.8 GHz Power Divider
Description

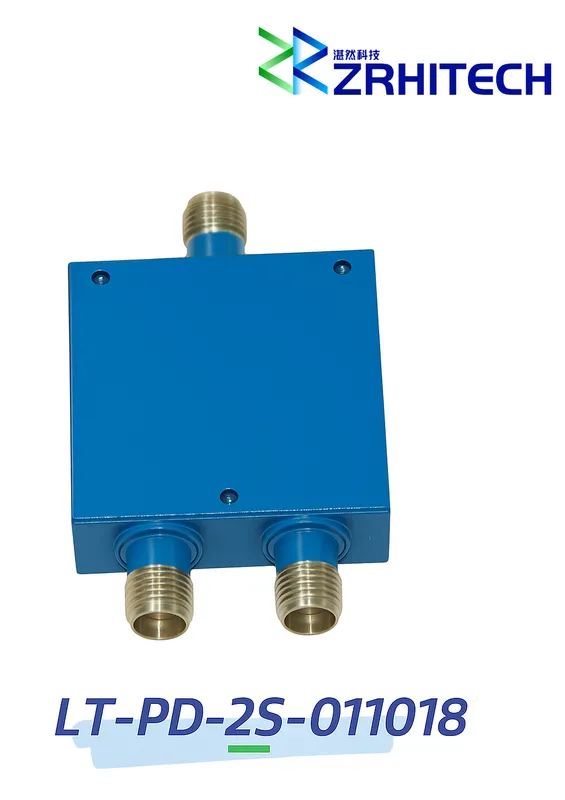

1.1 to 1.8 GHz 0.5 Watt LT-PD Series 2-Way Power Divider
Product Overview
The LT-PD-2S-011018 is a high-performance 2-way power divider operating in the 1.1 to 1.8 GHz frequency range, featuring stripline design and robust construction for industrial applications.
Key Features
- Frequency Range: 1.1 to 1.8 GHz
- Max Power Handling: 0.5 Watt
- Insertion Loss: < 0.5 dB
- Isolation: > 20 dB
- Operating Temperature: -40℃ to +70℃
- SMA-Female connectors
- Compact dimensions: 28×28×10 mm
- Compliance: CE, RoHS, REACH
- 1 Year Warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-2S-011018 | |
| Frequency Range | 1.1 to 1.8 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.3:1 Max. | |
| Output VSWR | 1.3:1 Max. | |
| Insertion Loss | 0.5 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 0.6 dB Max. | |
| Phase Balance | 6 Degrees Max. | |
| Input Power | 0.5 kW |
Note: Custom specifications available upon request. Please contact us for details.
Outline Drawing
