Description
2.5 to 2.57 GHz 0dBm Low Noise Amplifier
Product Overview
The LT-LA-025025-G40P0 from ZR is a high-performance RF Amplifier operating in the 2.5 to 2.57 GHz frequency range. This power amplifier features a 40 dB small signal gain with ±0.5 dB gain flatness, delivering 0dBm output power with 10 dBm input power.
Quick Detail
- Aluminum Housing
- Customizable Frequency
- -40℃~+70℃ Operating Temperature
- Small Signal Gain 40dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-025025-G40P0 | |
| Configuration | Module with Connector | |
| Frequency Range | 2.5 to 2.57 GHz | |
| Small Signal Gain | 40 dB | |
| Gain Flatness | ±0.5 dB | |
| Output Power | 0 dBm | |
| Input Power | 10 dBm | |
| VSWR | 1.8:1 | |
| Power Supply | +12V / 300mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 35x35x25.4 mm |
Note: for custom specifications, please contact us directly.

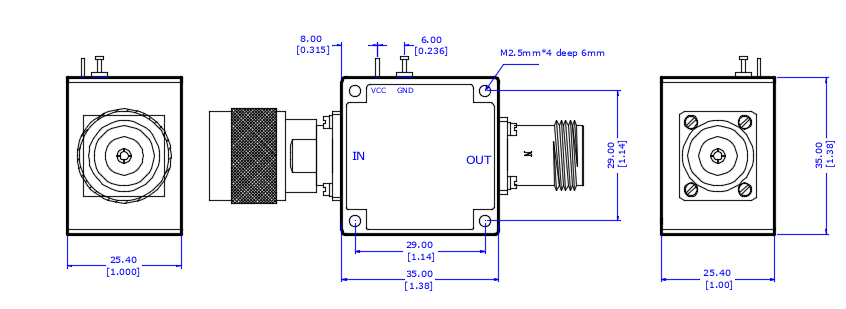

Outline Drawing
