Description

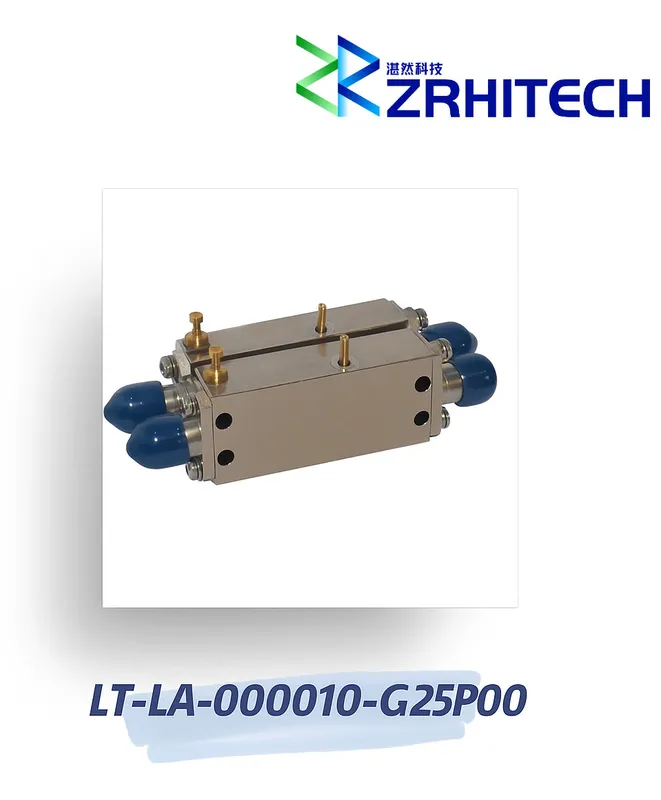

0.02 to 1 GHz LT-LA Series Power Amplifier
Product Overview
The LT-LA-000010-G25P0 from ZR is a RF Amplifier with Frequency 0.02 to 1 GHz, Small Signal Gain 25 dB, Gain Flatness ±1.5 dB, Output Power 0dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-LA-000010-G25P0 can be seen below.
Key Features
- Aluminum Housing
- Customizable Frequency
- -40℃~+70℃ Operating Temperature
- Small Signal Gain 25dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-000010-G25P0 | |
| Configuration | Module with Connector | |
| Frequency Range | 0.02 to 1 GHz | |
| Small Signal Gain | 25 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 0 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 200 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 40x25x12 mm |
Note: for custom specs, please contact us directly.

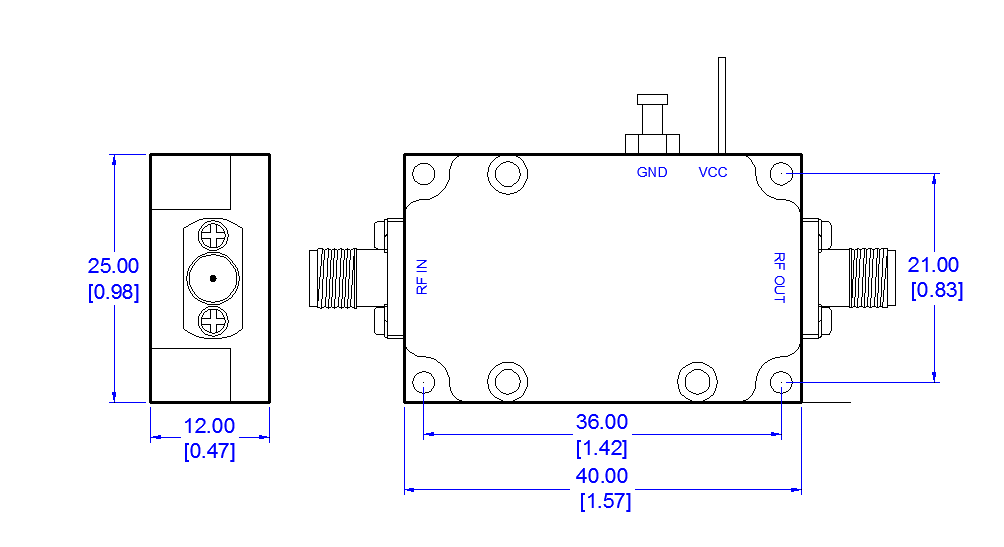

Outline Drawing (Unit: mm)
