Detail Information
Highlight:
50 Watt Power Divider
Description

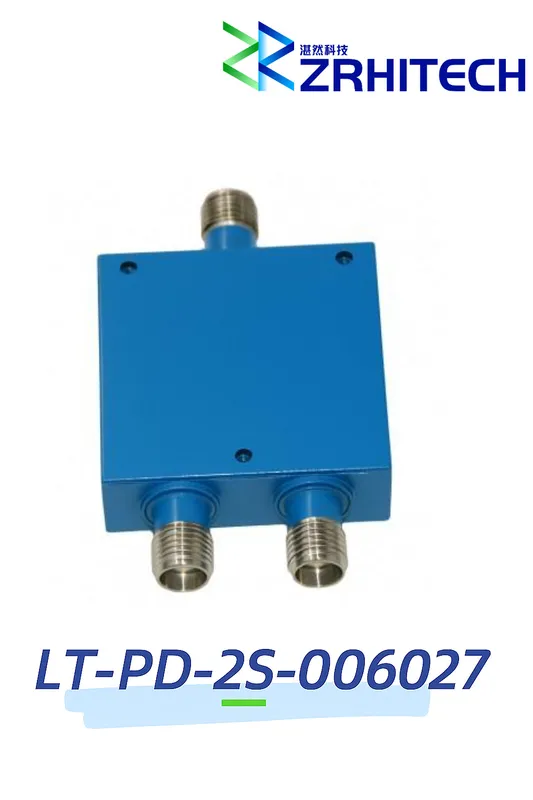

0.6 to 2.7 GHz 50 Watt LT-PD Series 2-Way Power Divider
Key Features
- 2-Way Power Divider
- Stripline Design
- -45℃ to +85℃ operating temperature
- 0.6 to 2.7 GHz Frequency Range
- Max Power 50 Watt
- Insertion Loss < 0.6 dB
- Isolation > 20 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Product Overview
The LT-PD-2S-006027 from ZR is a high-performance 2-way power divider operating from 0.6 to 2.7 GHz. Capable of handling up to 50 Watt (CW) with maximum insertion loss of 0.6 dB and minimum isolation of 20 dB. Features N-Female connectors and complies with REACH and RoHS standards.
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-2S-006027 | |
| Frequency Range | 0.6 to 2.7 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.3:1 Max. | |
| Output VSWR | 1.3:1 Max. | |
| Insertion Loss | 0.6 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 0.4 dB Max. | |
| Phase Balance | 6 Degrees Max. | |
| Input Power | 50 kW | |
| Connectors | N-Female | |
| Dimension | 50x56x18 mm |
Note: Custom specifications available upon request. Please contact us directly for details.

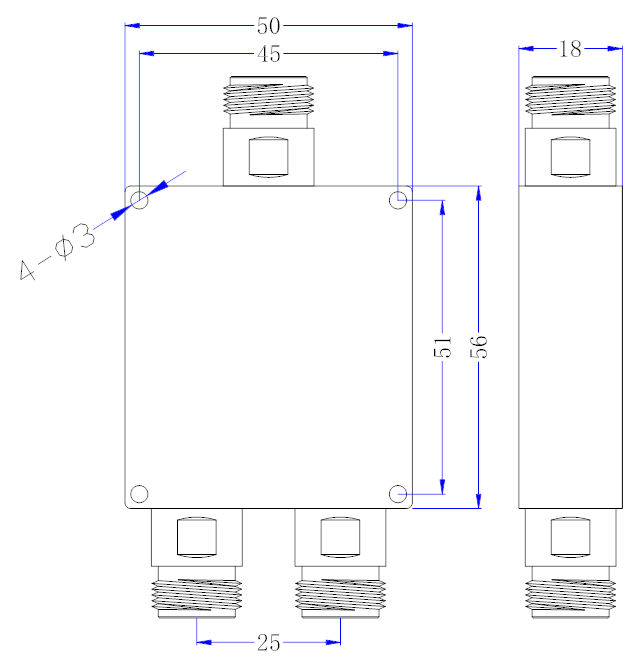

Product Dimensions
