Description

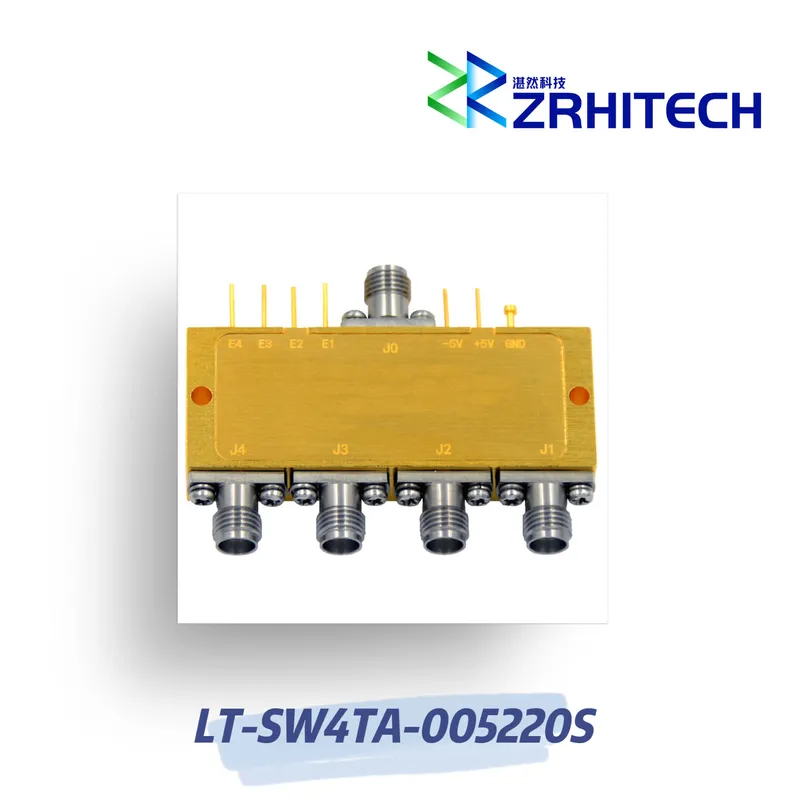

0.5 To 20 GHz SP4T Absorptive PIN Diode Switch
Product Overview
| Product Name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature Range | -40~85℃ |
| Frequency Range | 0.5 to 20 GHz |
| Color | Silver |
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃~+85℃)
- Fast switching time of 100ns
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-SW4TA-005200S is a high-performance absorptive PIN diode switch designed for wireless communication applications. Operating across a broad frequency range from 0.5 to 20 GHz, it offers excellent isolation of 60 dB and fast switching speed of 100ns. The device requires a power supply bias of +5V/200mA and -5V/50mA.
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW4TA-005200S | |
| Type | Absorptive | |
| Configuration | SP4T | |
| Frequency Range | 0.5 to 20 GHz | |
| Insertion Loss | 5.2 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 1.5:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V / 200mA -5V / 50mA |
|
| Dimensions | 52×20×10.2mm |
Note: Custom specifications available upon request.
Outline Drawing
