Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-SW Series PIN Doide Switch
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
0.5 To 20 GHz
Color:
Silver
Packaging Details:
carton packing
Highlight:
rf pin diode, rf pin switch, surface mount high power pin diode
Description

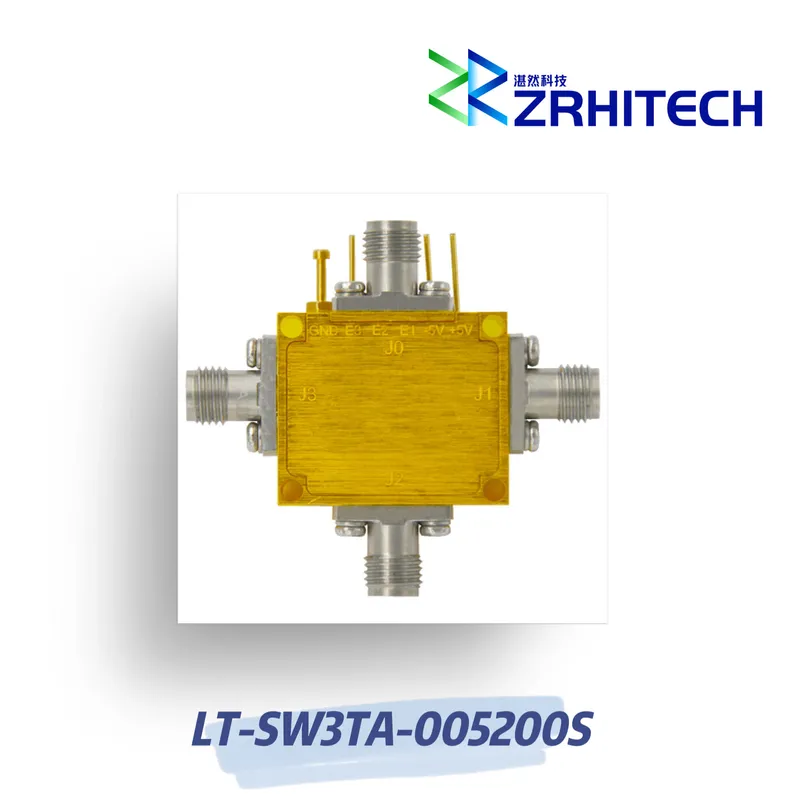

0.5 To 20 GHz SP3T Absorptive PIN Diode Switch
Product Overview
| Product Name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency Range | 0.5 to 20 GHz |
| Color | Silver |
Key Features
- Aluminum Housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃~+85℃)
- Fast switching time of 100ns
- Compliance with CE, RoHS, and REACH standards
- 1 Year Warranty included
Product Description
The LT-SW3TA-005200S is a high-performance Absorptive PIN Diode Switch operating in the 0.5 to 20 GHz frequency range. It features excellent isolation of 60 dB and rapid switching speed of 100ns. The device requires a power supply with bias of +5V/150mA and -5V/50mA.
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW3TA-005200S | |
| Type | Absorptive | |
| Configuration | SP3T | |
| Frequency Range | 0.5 to 20 GHz | |
| Insertion Loss | 3.8 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V / 150mA -5V / 50mA |
|
| Dimension | 40*20*10.2mm |
Note: Custom specifications available upon request.
Outline Drawing
