Detail Information
Place of Origin:
CHINA
Document:
Product Name:
LT-SW Series PIN Doide Switch
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
0.5 To 20 GHz
Color:
Silver
Packaging Details:
carton packing
Highlight:
pin diode fast switch, High Power SPDT PIN Diode Switch, pin diode switch 20GHz
Description

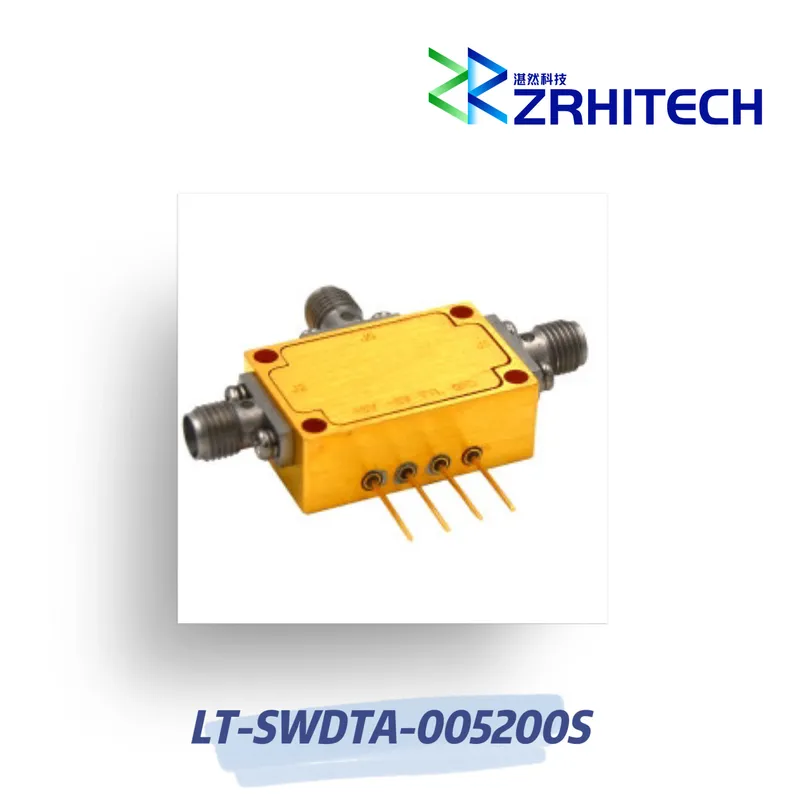

0.5 To 20 GHz SPDT Absorptive PIN Diode Switch
Product Overview
The LT-SW series PIN Diode Switch is designed for wireless communication applications, featuring a durable aluminum housing and operating temperature range of -40℃ to +85℃.
Key Features
- Broad frequency range: 0.5 to 20 GHz
- Fast switching time: 100ns
- Aluminum housing for durability
- Customizable frequency options
- CE, RoHS, REACH compliant
- 1 year warranty included
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTA-005200S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 0.5 to 20 GHz | |
| Insertion Loss | 3.5 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Power Supply | +5V / 50mA -5V / 50mA |
|
| Dimensions | 28 × 18 × 10.2 mm |
Note: Custom specifications available upon request.
Product Diagram
