Product Name:
LT-SW Series PIN Doide Switch
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
0.5 To 15 GHz
Color:
Silver
Packaging Details:
carton packing
Highlight:
15 GHz PIN Diode Switch
Description
0.5 To 15 GHz SPDT Absorptive PIN Diode Switch
Product Attributes
| Attribute | Value |
|---|---|
| Product name | LT-SW series PIN Diode Switch |
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 0.5 to 15 GHz |
| Color | Silver |
Product Description
0.5 to 15 GHz LT-SW Series PIN Diode Switch
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Fast Switching Time 100ns
- CE, RoHS, REACH compliant
- 1 Year Warranty

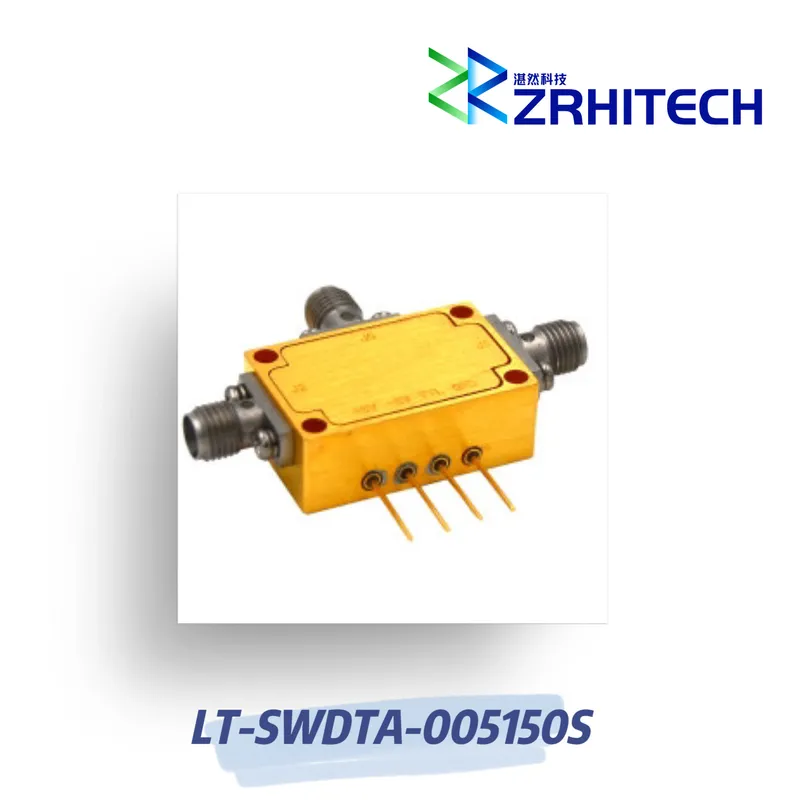

The LT-SWDTA-005150S from ZR is a Absorptive PIN Diode Switch with Frequency 0.5 to 15 GHz, Isolation 60 dB, Switching Speed 100ns. Power Supply with bias +5V/100mA and -5V/50mA. More details for LT-SWDTA-005150S can be seen below.
Specifications
Electrical / Optical Characteristics (Ta=25℃ ±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTA-005150S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 0.5 to 15 GHz | |
| Insertion Loss | 2.8 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input / Output VSWR | 2.0:1 | |
| Input Power | 1 W | |
| Power Supply(Bias) | +5V / 100mA -5V / 50mA |
|
| Dimension | 28*18*10.2mm |
Note: for custom specs, please contact us directly.
Outline Drawing (Unit: mm)
